MPG系列辐射交联热缩保护套管

MPG series Of radiation crosslinked heat shrinkable protection casing

   MPG系列辐射交联热缩保护套管是良好的电气绝缘和安全防护材料。具有安装方便、环境适应性极好、使用寿命长等特点。主要用于高低压开关柜、电厂、变电站中的母线母排绝缘防护及安全保护。杜绝异物搭接动物爬行引起的短路事故；防止人身触电、污染及凝露闪络现象发生。有效地减少母线排上间和对地之距离，处长母线排使用寿命。

   MPG series of radiation crosslinked heat shrinkable protection casing is good electrical insulation and safety protectivematerial. With easy installation,Very good environmental adptability and long service life etc Mainly used ln high and low voltage switchgear, power plant and substation of busbar busbarin sulation protection and safety protection. Put an endto foerign body lapcrawling animals caused by short circuit accident,Avoid personal electric shock,pollution and gel Flashover phenomenon, Effectively reduce bus line and ground between the distance, director general bus line sevvice life.

10-35KV MPG系列母排保护热缩套管

10-35KV MPG series of busbar protection heat shrinkable casing

1.硬度（邵氏）：<80           1.Hardness(shaw):<80

2.阻燃性：氧指数>30           2.Flame retardant:oxygen index >30

3.径向收缩率：> 50%           3.Radial shrinkage:> 50%

4.轴向收缩率：<5%            4.the axial shrinkage:< 5%

5.拉伸强度：>12Mpa            5.Tensile strength：>12mpa

6.击穿强度：≥23KV/mm          6.Breakdown strength：was 23 kv/mm

7.体积电阻系数：>1014Ω.cm       7.Volume resistivitv:> 1014Ω .cm

8.使用温度：-40+90℃           8.Using temperature：-40-+90℃

9.完全收缩温度：120～140～C      9.Complete shrinkage temperature:120-140-C

10.断裂伸长率：> 400%          10.Elongation at break:> 400%

11.标准颜色：红绿黄           11.The standard colors:red ,green,yellow

12.栎准长度：1M; 25M           12.The standard length:lm; 25m

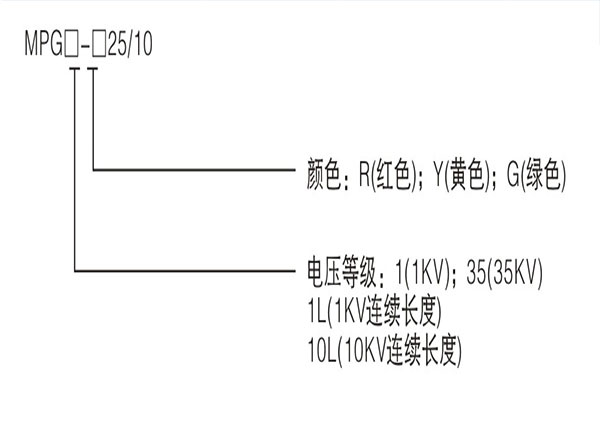

例如：MPGlO-R25/10

表示适用于10KV20-30mm宽度母排，颜色为红色

Such as: MPGlO - R25/10

Said suitable for ten kv20-30mm width bus, color is red
